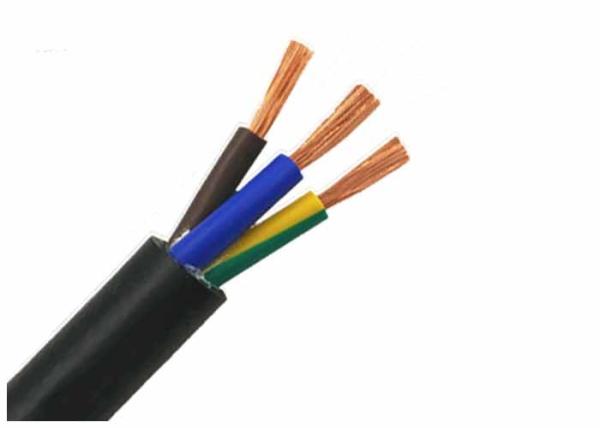

    PVC Insulated / Sheathed Electrical Cable Wire Flexible Copper Conductor 3 Cores Wire Cable

    Ask Lasest Price
    Brand Name : SHANCABLE
    Model Number : RVV 3*10
    Certification : ISO,CE,IEC,TUV,KEMA
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100KM/Week
    Delivery Time : 10 Days
    • Product Details
    • Company Profile

    PVC Insulated / Sheathed Electrical Cable Wire Flexible Copper Conductor 3 Cores Wire Cable

    PVC Insulated & Sheathed Electrical Cable Wire Flexible Copper Conductor 3 Cores Wire Cable


    Applications

    In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted.


    Construction

    Multi-cores PVC insulation and sheathed cables with flexible copper conductor for general purposes

    Rated voltage450/750V Low Voltage
    Maximum Conductor TemperatureUnder normal (75℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions
    Min. Ambient Temp0 ℃, after installation and only when cable is in a fixed position
    Min. Bending Radius15 x cable O.D for multi core without armor

    Technical parameter


    Cross section of conductorThickness of insulationThickness of SheathApprox.cable diameterMax.resistance of conductor at 20 ℃Test Voltage(AC)
    mm2mmmmmmohm/kmKV/5min
    3x1.50.81.810.912.13.5
    3x2.50.81.811.87.413.5
    3x41.01.813.74.613.5
    3x61.01.814.83.083.5
    3x101.01.817.61.833.5


    Standards
    International: IEC 60227
    China: GB/T 5023-2008
    Other standards such as BS,DIN and ICEA upon request

    Technical data
    Rated voltage: 450/750 V
    Max. Conductor Temp. in normal use: 70℃
    Min. Bending Radius: 4 x cable O.D
    Certificates
    CE, RoHS, CCC, KEMA and more others at request


    Packing & Shipping

    All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

    The packing material is depended on the weight and size of cable.

    The good information, manufacture information, and the client's information is firmly printed on each size of drum.

    After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

    The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.

    Our Services

    ♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.

    ♦ We accept OEM. The cable size and material are customized.Ur own logo and

    own design are welcome. We will produce according to your requirement and description;

    ♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.

    FAQ
    1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
    2. Payment: We accept T/T, L/C , just choose what you like
    3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
    4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
