    Fireproof LSZH Low Smoke Zero Halogen Cable 4 Cores IEC 60228 / IEC 60332

    Ask Lasest Price
    Brand Name : SHAN CABLE
    Model Number : WDZAN-YJY 0.6/1 KV CU/MICA/XLPE/LSOH
    Certification : CE, IEC
    Price : 0.1-99 USD/M
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 5000 KM/Month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    Fireproof LSZH Low Smoke Zero Halogen Cable 4 Cores IEC 60228 / IEC 60332

    Application:
    To be laid directly in ground, outdoors, indoors and in cable ducts.
    Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

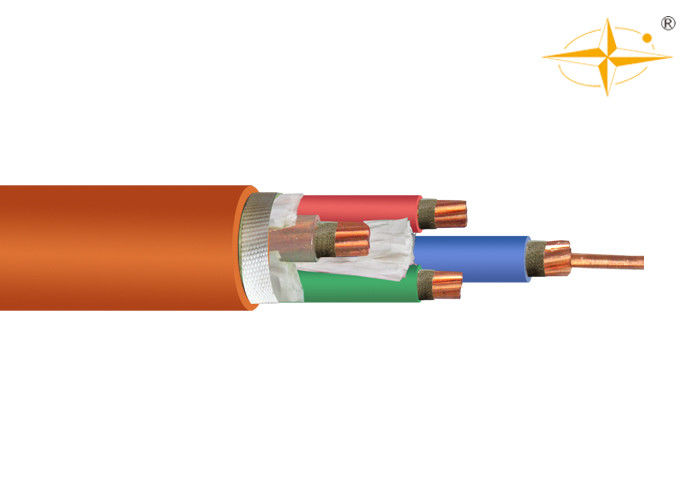

    Construction:

    1 ..... stranded (RM) bare copper
    2 ..... Mica Tape for Fire Resistant
    3 ..... core insulation of cross-linked polyethylene
    4 ..... Fillers
    5 ..... Wrapping tape or Flame Retardant tape
    6 ..... PVC Inner Bedding
    7 ..... Galvanized Steel Wire Armour
    8 ..... outer sheath of Low smoke halogen-free flame retardantmaterial (LSOH)

    Standards:

    IEC 60502, 60228, 60332, 60331
    DIN VDE 0276-620
    HD 620 S1: 1996
    DIN EN 60228 class 2 (construction)
    Technical data:
    Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
    Temperature range in motion -5°C till +70°C
    fixed -20°C till +70°C
    Operating temperature short circuit °C 250
    Short circuit time max. [sec] 5
    Bending radius min. x diameter 15
    Flammability standard EN 60332-1-2

    Specifications:

    Nom. Cross-section of conductor

    Strands
    No./Dia. Of Conductor

    Insulation ThicknessInner Covering ThicknessDia. Of Armor WireSheath ThicknessApprox. O.D.

    Approx.
    Weight

    Max. D.C Resistance of Conductor (20 ℃)Testing Voltage A.CCurrent Rating
    mm2pc/mmmmmm(mm)kg/kmΩ /kmkV/5minIn air (A)In soil(A)
    4 × 47/0.850.71.00.91.818.06994.613.53445
    4 × 67/1.040.71.01.251.819.08203.083.54357
    4 × 107/1.380.71.01.251.822.012331.833.56077
    4 × 167/1.780.71.01.61.824.515501.153.583105
    4 × 257/2.140.91.01.61.829.220360.7273.5105125
    4 × 357/2.520.91.02.01.932.525010.5243.5125155
    4 × 5010/2.521.01.02.02.033.030640.3873.5160185
    4 × 7014/2.521.11.02.02.137.039740.2683.5200225
    4 × 9519/2.521.11.22.02.343.050320.1933.5245270
    4 × 12024/2.521.21.22.52.545.063270.1533.5285310
    4 × 15030/2.521.41.42.52.751.077650.1243.5325345
    4 × 18537/2.521.61.42.52.856.092050.09913.5375390
    4 × 24048/2.521.71.42.53.062.0114440.07543.5440450
    4 × 30061/2.521.81.62.53.267.0138300.06013.5505515
    4 × 40061/2.972.01.63.153.574.0196730.04703.5570575
