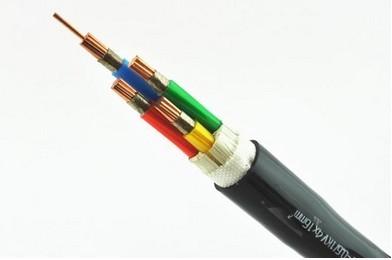

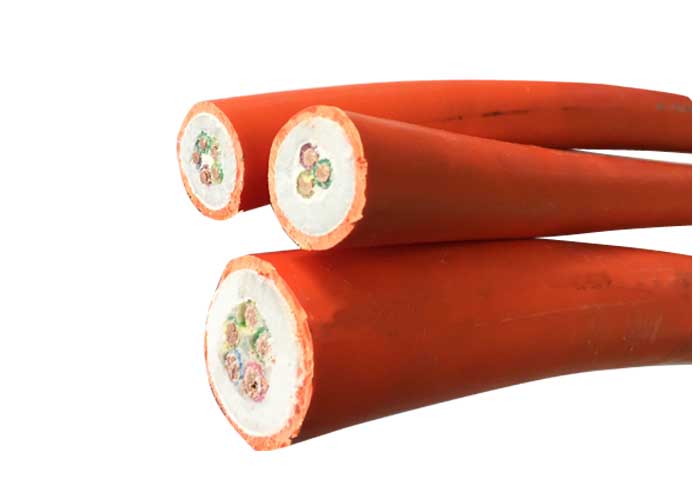

Heat Resistant Cable Low Smoke Zero Halogen Power Cable Fire Resistant

Ask Lasest Price
Brand Name :	SHANCABLE
Model Number :	WDZAN-YJY
Certification :	ROHS CE KEMA
Price :	0.38-25.6USD/M
Payment Terms :	L/C, T/T
Supply Ability :	200KM/Month
Delivery Time :	As per schedual

Add to Cart

Product Details
Company Profile

Heat Resistant Cable Low Smoke Zero Halogen Power Cable Fire Resistant

Heat Resistant Cable Low Smoke Zero Halogen Power Cable Fire Resistant

Specifications

Conductor	:	Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper
Fire Barrier	:	Mica Tape
Insulation	:	XLPE (For FR-200) or LSOH (For FR-300)
Sheath	:	LSOH

Application for Fire Resistive Power Cable, Fire Rated Power Cable

This cable is specially designed for areas where integrity of electrical circuit is critical to maintain the power supply. Application usage can be found in:- emergency lightings, control and power circuits, fire alarm systems, communication systems, lifts and escalators, power stations, underground tunnels, sewage treatment plans, high-rise buildings, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals,etc.

Construction for Fire Resistive Power Cable, Fire Rated Power Cable

Conductor	:	Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper
Fire Barrier	:	Mica Tape
Insulation	:	XLPE (For FR-200) or LSOH (For FR-300)
Sheath	:	LSOH
Insulation Colour	:	2C – Brown & Blue 3C – Brown, Black & Grey 4C – Brown, Black, Grey & Blue 2C+E – Brown, Blue + Green/Yellow 3C+E – Brown, Black, Grey + Green/Yellow 4C+E – Brown, Black, Grey, Blue + Green/Yellow 5C & above – White Cores Printed With Number

Note:
1. The models also contain fire-resistant type of low voltage power cable.
2. When signing the contract, the fire resistant type must be specified. For example, if type A is preferred, please add "A" to the end of "ZR", forming "ZRA", and A is usually used in places where the fire resistant property is highly required. B and C follow the same rule. In addition, if there is no letter after "ZR", the cable will be produced following "ZRC".

Technical data

Rated voltage: 0.6-KV

Max. Conductor Temp.:normal (90℃), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5% ,Multi-core cable 15(d+D)±5%

Nom. Cross-section of conductor	Insulation Thickness	Sheath	Approx.	Approx	Max. D.C. Resistance of Conductor (20°C)	Test Voltage	Current Rating
mm2	mm	Thickness	O.D.	Weight	Ω/km	A.C	Current Rating
		mm	mm	kg/km		kV/5min	In air(A)	In soil(A)
1×1.5	0.7	1.8	7.7	81	12.1	3.5	22	33
1×2.5	0.7	1.8	8.1	95	7.41	3.5	31	43
1×4	0.7	1.8	8.5	114	4.61	3.5	41	56
1×6	0.7	1.8	9.1	137	3.08	3.5	52	70
1×10	0.7	1.8	10.3	189	1.83	3.5	71	94
1×16	0.7	1.8	11.4	254	1.15	3.5	92	120
1×25	0.9	1.8	12.9	359	0.727	3.5	120	155
1×35	0.9	1.8	13.9	460	0.524	3.5	150	185
1×50	1	1.8	15.5	606	0.387	3.5	180	220
1×70	1.1	1.8	17.5	808	0.268	3.5	230	270
1×95	1.1	1.8	19.3	1047	0.193	3.5	285	320
1×120	1.2	1.8	20.9	1289	0.153	3.5	335	365
1×150	1.4	1.8	22.9	1582	0.124	3.5	385	410
1×185	1.6	1.8	25.2	1927	0.0991	3.5	450	465
1×240	1.7	1.8	27.7	2458	0.0754	3.5	535	540
1×300	1.8	1.9	31.2	3096	0.0601	3.5	620	610
1×400	2	2	34.8	4064	0.047	3.5	720	695
2×1.5	0.7	1.8	12.7	172	12.1	3.5	20	27
2×2.5	0.7	1.8	13.5	204	7.41	3.5	26	35
2×4	0.7	1.8	14.6	247	4.61	3.5	34	45
2×6	0.7	1.8	15.5	300	3.08	3.5	43	57
2×10	0.7	1.8	18.1	418	1.83	3.5	60	77
2×16	0.7	1.8	20.2	563	1.15	3.5	83	105
2×25	0.9	1.8	23.2	800	0.727	3.5	105	125
2×35	0.9	1.8	25.2	1026	0.524	3.5	125	155
2×50	1	1.8	28.4	1338	0.387	3.5	160	185
2×70	1.1	1.9	32.6	1804	0.268	3.5	200	225
2×95	1.1	2	36.4	2343	0.193	3.5	245	270
2×120	1.2	2.1	39.8	2891	0.153	3.5	285	310
2×150	1.4	2.3	44.2	3639	0.124	3.5	325	345
2×185	1.6	2.4	49	4458	0.0991	3.5	375	390
2×240	1.7	2.6	54.4	5696	0.0754	3.5	440	450
3×1.5	0.7	1.8	13.4	203	12.1	3.5	20	27
3×2.5	0.7	1.8	14.2	246	7.41	3.5	26	35
3×4	0.7	1.8	15.2	304	4.61	3.5	34	45
3×6	0.7	1.8	16.4	376	3.08	3.5	43	57
3×10	0.7	1.8	19.1	534	1.83	3.5	60	77
3×16	0.7	1.8	21.4	737	1.15	3.5	83	105
3×25	0.9	1.8	24.7	1063	0.727	3.5	105	125
3×35	0.9	1.8	26.9	1380	0.524	3.5	125	155
3×50	1	1.9	30.5	1837	0.387	3.5	160	185
3×70	1.1	2	35	2490	0.268	3.5	200	225
3×95	1.1	2.1	39.1	3325	0.193	3.5	245	270
3×120	1.2	2.3	42.8	4120	0.153	3.5	285	310
3×150	1.4	2.4	47.5	5092	0.124	3.5	325	345
3×185	1.6	2.6	52.9	6245	0.0991	3.5	375	390
3×240	1.7	2.7	58.5	7996	0.0754	3.5	440	450
4×1.5	0.7	1.8	14.4	241	12.1	3.5	20	27
4×2.5	0.7	1.8	15.4	295	7.41	3.5	26	35
4×4	0.7	1.8	16.5	369	4.61	3.5	34	45
4×6	0.7	1.8	17.8	463	3.08	3.5	43	57
4×10	0.7	1.8	20.9	667	1.83	3.5	60	77
4×16	0.7	1.8	23.4	930	1.15	3.5	83	105
4×25	0.9	1.8	27.1	1351	0.727	3.5	105	125
4×35	0.9	1.8	29.5	1772	0.524	3.5	125	155
4×50	1	1.9	38.4	2380	0.387	3.5	160	185
4×70	1.1	2	43.2	3302	0.268	3.5	200	225
4×95	1.1	2.2	47.3	4330	0.193	3.5	245	270
4×120	1.2	2.3	52.5	5374	0.153	3.5	285	310
4×150	1.4	2.5	58.3	6655	0.124	3.5	325	345
4×185	1.6	2.7	64.7	8246	0.0991	3.5	375	390
4×240	1.7	2.9	73.1	10569	0.0754	3.5	440	450
5×1.5	0.7	1.8	13.6	284	12.1	3.5	20	27
5×2.5	0.7	1.8	16.6	349	7.41	3.5	26	35
5×4	0.7	1.8	17.9	441	4.61	3.5	34	45
5×6	0.7	1.8	19.3	558	3.08	3.5	43	57
5×10	0.7	1.8	22.8	809	1.83	3.5	60	77
5×16	0.7	1.8	25.6	1135	1.15	3.5	83	105
5×25	0.9	1.8	29.7	1664	0.727	3.5	105	125
5×35	0.9	1.9	32.6	2194	0.524	3.5	125	155
5×50	1	2	37.3	3013	0.387	3.5	160	185
5×70	1.1	2.1	42.9	4101	0.268	3.5	200	225
5×95	1.1	2.2	48.2	5382	0.193	3.5	245	270
5×120	1.2	2.4	52.7	6685	0.153	3.5	285	310
5×150	1.4	2.5	58.5	8363	0.124	3.5	325	345
5×185	1.6	2.7	65.1	10268	0.0991	3.5	375	390
5×240	1.7	3.1	72.3	13167	0.0754	3.5	440	450
3×2.5+1×1.5	0.7	1.8	15.2	254	7.41	3.5	26	35
3×4+1×2.5	0.7	1.8	16.3	352	4.61	3.5	34	45
3×6+1×4	0.7	1.8	17.5	440	3.08	3.5	43	57
3×10+1×6	0.7	1.8	20.1	616	1.83	3.5	60	77
3×16+1×10	0.7	1.8	22.8	865	1.15	3.5	83	105
3×25+1×16	0.7	1.8	26.2	1248	0.727	3.5	105	125
3×35+1×16	0.9	1.8	28	1557	0.524	3.5	125	155
3×50+1×25	1	1.9	32	2120	0.387	3.5	160	185
3×70+1×35	1.1	2.1	36.7	2863	0.268	3.5	200	225
3×95+1×50	1.1	2.2	41.1	3854	0.193	3.5	245	270
3×120+1×70	1.2	2.4	45.6	4857	0.153	3.5	285	310
3×150+1×70	1.4	2.5	49.4	5808	0.124	3.5	325	345
3×185+1×95	1.6	2.7	55.1	7271	0.0991	3.5	375	390
3×240+1×120	1.7	2.9	60	9269	0.0754	3.5	440	450
3×2.5+2×1.5	0.7	1.8	18.8	299	7.41	3.5	26	35
3×4+2×2.5	0.7	1.8	20	405	4.61	3.5	34	45
3×6+2×4	0.7	1.8	21.5	513	3.08	3.5	43	57
3×10+2×6	0.7	1.8	24	708	1.83	3.5	60	77
3×16+2×10	0.7	1.8	27.1	1006	1.15		83	105
3×25+2×16	0.7	1.8	30.8	1448	0.727		105	125
3×35+2×16	0.9	1.9	32.6	1760	0.524		125	155
3×50+2×35	1	2.1	37.3	2427	0.387		160	185
3×70+2×35	1.1	2.2	42.1	3338	0.268		200	225
3×95+2×50	1.1	2.4	47.8	4426	0.193		245	270
3×120+2×70	1.2	2.5	52.6	5645	0.153		285	310
3×150+2×70	1.4	2.7	56.5	6587	0.124		325	345
3×185+2×95	1.6	2.9	62.9	8225	0.0991		375	390
3×240+2×120	1.7	3.1	69.3	10453	0.0754		440	450
4×2.5+1×1.5	0.7	1.8	16.5	313	7.41		26	35
4×4+1×2.5	0.7	1.8	17.7	424	4.61		34	45
4×6+1×4	0.7	1.8	19.1	535	3.08		43	57
4×10+1×6	0.7	1.8	22.1	760	1.83		60	77
4×16+1×10	0.7	1.8	25.1	1071	1.15		83	105
4×25+1×16	0.7	1.8	29	1556	0.727		105	125
4×35+1×16	0.9	1.9	31.4	1976	0.524		125	155
4×50+1×25	1	2.1	36	2689	0.387		160	185
4×70+1×35	1.1	2.2	41.1	3719	0.268		200	225
4×95+1×50	1.1	2.4	46.3	4903	0.193		245	270
4×120+1×70	1.2	2.5	51	6165	0.153		285	310
4×150+1×70	1.4	2.7	55.8	7431	0.124		325	345
4×185+1×95	1.6	2.9	62.1	9192	0.0991		375	390
4×240+1×120	1.7	3.1	68.8	11860	0.0754		440	450
