    CU / Mica Tape Fire Resistant Cable For Sprinkler / Smoke Control System

    Ask Lasest Price
    Brand Name : SHANCABLE
    Model Number : NH-YJV
    Certification : CE/KEMA/CCC
    Price : USD0.5-50/Meter
    Supply Ability : 100KM per Month
    Delivery Time : As per request
    • Product Details
    • Company Profile

    CU / Mica Tape Fire Resistant Cable For Sprinkler / Smoke Control System

    CU / Mica Tape Fire Resistant Cable For Sprinkler / Smoke Control System

    Application:
    These cables are installed to supply power to building essential services including fire alarms,
    sprinkler control system, emergency and evacuation lighting and smoke control systems,
    such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels

    Constructions

    Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound
    Insulation: XLPE or LSZH compound
    Sheath: LSZH compound
    Core color: red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath

    Technical data

    Rated voltage: 0.6-KV
    Max. Conductor Temp.: Normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )
    Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
    Min. Bending Radius: Single core cable 20(d+D)±5%
    Multi-core cable 15(d+D)±5%

    Certificates
    CE, RoHS, CCC, KEMA and more others at request

    Product code

    SC1-FPB-CEXLPE insulated halogen-free polyolefin sheathed safe & clean fire-proof cable
    SC3-FPB-CVXLPE insulated low-halogen PVC sheathed safe & clean fire-proof cable
    SC1-FPB-CE2XLPE insulated steel tape armored halogen-free polyolefin sheathed safe & clean fire-proof cable
    SC3-FPB-CV2XLPE insulated steel tape armored low-halogen PVC sheathed safe & clean fire-proof cable


    Code designations

    SSafe
    CClean, Low smike, zero halogen
    1 or 3Flame resistant class as per GA306.1-2001
    A or CFlame resistant type A or C
    FPFire proof
    BFire rated temperature 750-800℃
    CCrosslinked polyethylene-XLPE
    CTXLPE insulated control cable
    EZero halogen polyolefin sheath
    VLow halogen PVC sheath
    2Steel tape armoring
    PCopper wire braid screen
    P2Copper tape screen


    Specifications

    VoltageModel No.CoresSection area (mm2)Model No.CoresSection area (mm2)
    0.6/1kVSC1A-CE and SC1-FPB-CE series11.5 400SC1A-CE2 and SC1-FPB-CE2 series11.5 400
    21.5 40021.5 400
    31.5 40031.5 400
    41.5 40041.5 400
    3+12.5 2403+12.5 240
    52.5 24052.5 240
    3+22.5 2403+22.5 240
    4+12.5 2404+12.5 240
    4 611 2.54 611 2.5
    450/750VSC1A-CTE series4 144

    CBV
    CRV series cables’ specifications
    CBVR

    SC1A-CTE2 series4 146
    SC1A-CTEP series
    SC1A-CTEP2 series


    Who we are

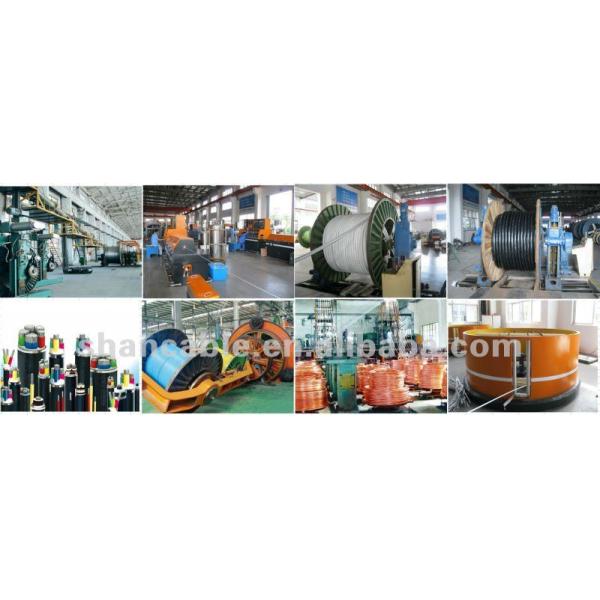

    Our workshop
