    Rigid / Stranded Copper 2 Core 4 Core Armoured Cable For Laying Indoor Outdoor

    Ask Lasest Price
    Brand Name : SHANCABLE
    Model Number : YJV22 VV22 LV
    Certification : ISO,CE,IEC,TUV,KEMA
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100KM/Week
    Delivery Time : 10 Days
    • Product Details
    • Company Profile

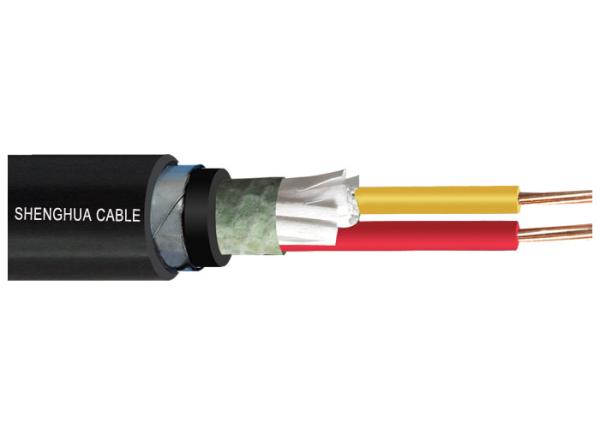

    Rigid / Stranded Copper 2 Core 4 Core Armoured Cable For Laying Indoor Outdoor

    Rigid / Stranded Copper 2 Core 4 Core Armoured Cable For Laying Indoor Outdoor


    Cable details


    Code:VV22, YJV22, CU/XLPE, PVC/STA/PVC
    Standarts:IEC 60502-1, IEC 60228, VDE, BS
    Construction:1- Solid, Stranded or Flexible Copper Conductor
    2- XLPE / PVC Insulation
    3- Galvanized Steel Tape Armour
    4- PVC outer sheath, or PE, LSOH
    Application:Preferably for installation indoors, in cable ducts and in industrial plants or
    switching stations, underground installation with additional protection where
    mechanical damage is unexpected.
    Technical Data:Max. operating temperature 75 ºC
    Short circuit temperature 160 ºC
    Code meaningV: PVC insulation
    V: PVC sheath
    22: Galvanized steel tape armoring

    Standards


    IEC60502, BS6346, VDE, AS/NZS, UL,etc or as customer's request.


    Rated Voltage(kV):


    1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
    2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35



    Number of cores:


    1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.


    Applications


    Used for power transmission and distribution line with voltage rated at 35kV and below.


    Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.


    Model & Spec.


    TypeDesciptionRated VoltageNO. of CoresNomibal section(mm2)Applications
    YJV YJLVCu or Al conductor,XLPE insulated.PVC sheathed electric cable0.6/1KV1,2,3,41.5 to 400For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.
    3+13×4+1×2.5 to 3×400+1×185
    6/6kV1,325 to 500
    8.7/10kV 8.7/15kV 12/20kV125 to 500
    325 to 300
    21/35kv150 to 500
    YJV22 YJLV22Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable0.6/1KV31.5 to 400Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.
    44 to 240
    6/6kV 8.7/10kV 8.7/15kV 12/20kV325 to 300
    21/35kv350 to 240

    Technique property:


    1, The long time working temperature is at 75℃, suffer short circuit (within 5 seconds), the temperature of core can not higher than 160℃

    2, The ambient temperature should not lower than -10℃

    3, The laying temperature should not lower than 0℃

    4, Single core’s bend radius with no armor should not exceed 20D,single core’s bend radius with armor should not exceed than 15D,three cores’ bend radius with armor should not exceed 12D


    Note:


    1. Only a part of cables are listed in the table. Cables with other specifications can be inquired.

    2. Cables can be supplied with a range of single mode or multi mode.
    3. Specially designed Cables structure is available on request.



    PACKING AND SHIPPING

    We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.


    Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.


    Services


    ♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
    ♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
    ♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
