Fire Resistant Steel Tape Armoured Electrical Cable XLPE Insulated Copper Conductor FRC Cable

Shanghai Shenghua Cable (Group) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Fire Resistant Steel Tape Armoured Electrical Cable XLPE Insulated Copper Conductor FRC Cable from wholesalers

    Buy cheap Fire Resistant Steel Tape Armoured Electrical Cable XLPE Insulated Copper Conductor FRC Cable from wholesalers
    • Buy cheap Fire Resistant Steel Tape Armoured Electrical Cable XLPE Insulated Copper Conductor FRC Cable from wholesalers
    • Buy cheap Fire Resistant Steel Tape Armoured Electrical Cable XLPE Insulated Copper Conductor FRC Cable from wholesalers
    • Buy cheap Fire Resistant Steel Tape Armoured Electrical Cable XLPE Insulated Copper Conductor FRC Cable from wholesalers
    • Buy cheap Fire Resistant Steel Tape Armoured Electrical Cable XLPE Insulated Copper Conductor FRC Cable from wholesalers

    Fire Resistant Steel Tape Armoured Electrical Cable XLPE Insulated Copper Conductor FRC Cable

    Ask Lasest Price
    Brand Name : SHANCABLE
    Model Number : NH-YJV32 FRC Cable
    Certification : ISO,CE,IEC,TUV,KEMA
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100KM/Week
    Delivery Time : 10 Days
    • Product Details
    • Company Profile

    Fire Resistant Steel Tape Armoured Electrical Cable XLPE Insulated Copper Conductor FRC Cable

    Fire Resistant Steel Tape Armoured Electrical Cable XLPE Insulated Copper Conductor FRC Cable

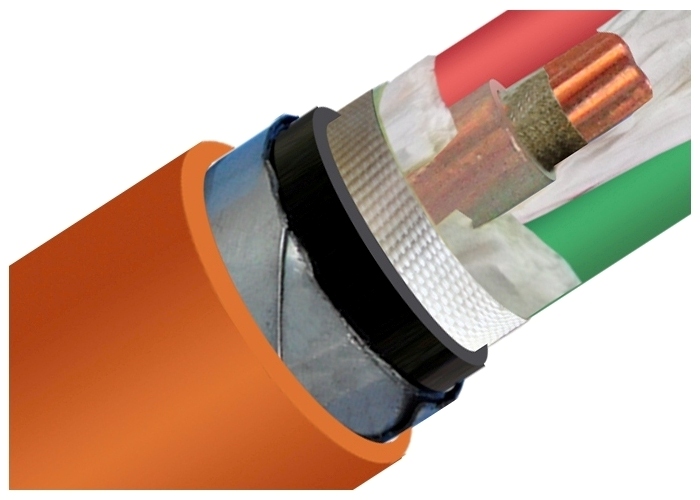

    Construction:


    Stranded (RM) bare copper as per IEC60228
    Mica Tape for Fire-Proof
    XLPE (cross-linked polyethylene) Insulation
    Fillers strip, Yarn, or Paper
    Non woven Wrapping tape or Flame Retardant

    Extruded PVC Inner Covering

    Galvanized Steel Tape Armoured
    Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH


    Application:


    Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.


    Technical data:


    Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
    Temperature range in motion -5°C till +70°C
    fixed -20°C till +70°C
    Operating temperature short circuit °C 250
    Short circuit time max. [sec] 5
    Bending radius min. x diameter 15
    Flammability standard EN 60332-1-2



    Standards:


    IEC 60502, 60332, 60331

    DIN VDE 0276-620
    HD 620 S1: 1996
    DIN EN 60228 class 2 (construction)


    Model Explanation:


    ModelNominal Cross Section (mm2)
    Single
    Core
    Two
    Core
    Three
    Core
    Four
    Core
    Five
    Core
    NH-VV NH-YJV1.5-8001.5-8001.5-8001.5-8001.5-800
    NH-VV22 NH-YJV226-4004-3004-3004-3004-300
    NH-VV32 NH-YJV3210-8004-3004-3004-3004-300




    PACKING AND SHIPPING:

    We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

    Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.


    AFTER-SERVICE COMMITMENT:

    Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

    1. Customer is God. We will cherish every client, every cooperation by heart.
    2. Free pre-sales service. We will provide best proposal for each client.
    3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
    technical advisory service when establish cooperation relationship with clients.
    4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
    provide free maintaining and debugging within 12 month after installation(except for the wrong using).
    5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
    6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.

    We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
